Spunbond nonwoven fabric belt
Red Round Wire Mesh belt WFB704

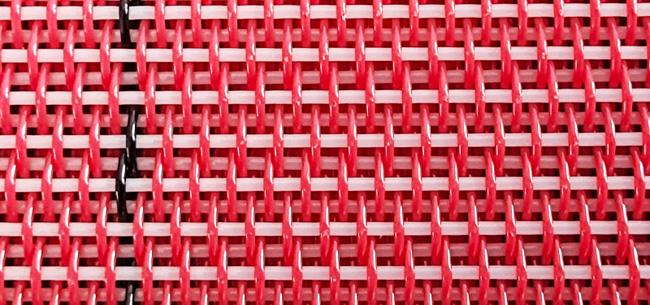

Red round wire mesh WFB704, non-woven fabric specific mesh curtain, mesh curtain introduction:

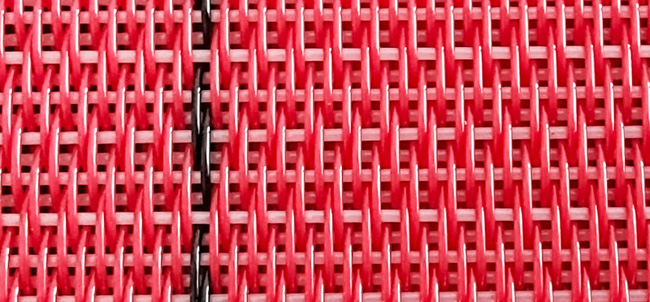

Mesh curtain reverse side (machine side)

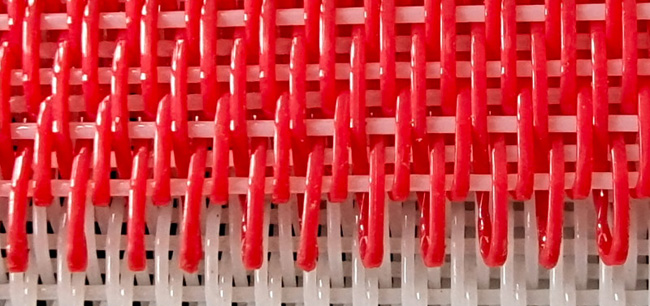

Interface method (self ring)
Main technical parameters of mesh curtains:
Model: WFB704
Diameter (mm) Meridian: 0.50mm Latitude: 0.60mm
Density (cm) Meridian: 20.5 pieces/cm Latitude: 10.5 pieces/cm
Thickness: 1.68mm
Weight: 1000 g/㎡
Strength (N/5x20cm): 8378N
Latitude strength (N/5x20cm): 7553N
Elongation rate: 6.5%
Elongation rate of weft: 4%
Breathability: 9500 m ³ / ㎡ h
Interface method: self ring, spiral ring, imported spiral ring.
Usage: Spunbonded non-woven fabric forming and conveying.
Product features:
1. The chamfered design of the mesh structure makes the slurry easy to clean.
2. A smooth mesh structure ensures easy peeling of the low weight fabric surface.
3. Advanced aerodynamic design scheme makes wind pressure regulation convenient and fast.
4. High viscosity monofilament, smaller roller diameter for easy handling, without burrs.
5. The interface locking structure prevents burrs from jumping out of the joint.
Model: WFB704
Diameter (mm) Meridian: 0.50mm Latitude: 0.60mm
Density (cm) Meridian: 20.5 pieces/cm Latitude: 10.5 pieces/cm
Thickness: 1.68mm
Weight: 1000 g/㎡
Strength (N/5x20cm): 8378N
Latitude strength (N/5x20cm): 7553N
Elongation rate: 6.5%
Elongation rate of weft: 4%
Breathability: 9500 m ³ / ㎡ h
Interface method: self ring, spiral ring, imported spiral ring.
Usage: Spunbonded non-woven fabric forming and conveying.
Product features:
1. The chamfered design of the mesh structure makes the slurry easy to clean.
2. A smooth mesh structure ensures easy peeling of the low weight fabric surface.
3. Advanced aerodynamic design scheme makes wind pressure regulation convenient and fast.
4. High viscosity monofilament, smaller roller diameter for easy handling, without burrs.
5. The interface locking structure prevents burrs from jumping out of the joint.
