Spunbond nonwoven fabric belt

Anti-static conveyor mesh belt KJD806

Non woven fabric special mesh - anti-static mesh curtain KJD806
Mesh curtain image introduction:

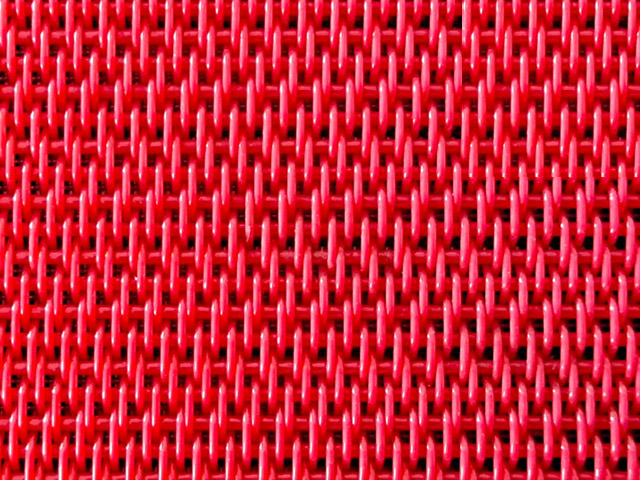

Front of mesh curtain (contact fabric surface)

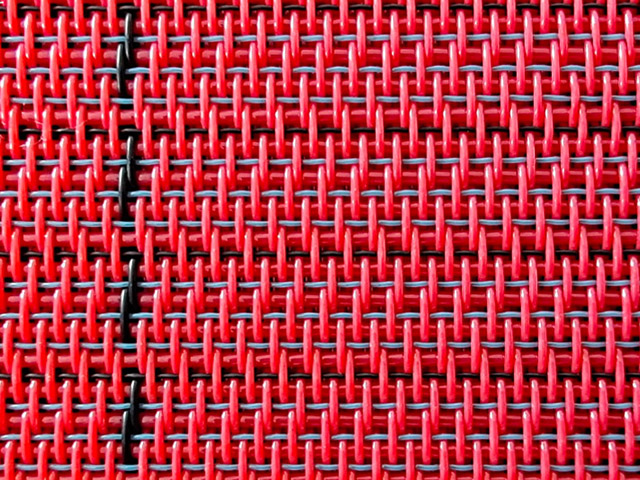

The reverse side of the mesh curtain (in contact with the machine surface)

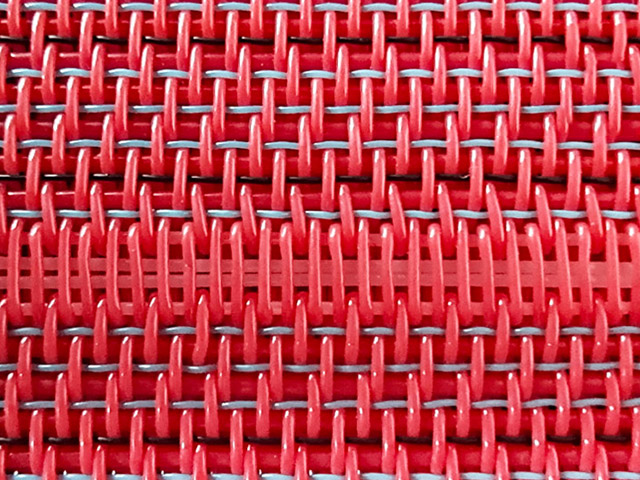

One of the mesh curtain interface methods (double ring)

Main technical parameters of mesh curtains:
Model: KJD806
Diameter (mm) Meridian: 0.50mm Latitude: 0.80/0.30mm
Density (cm) Meridian: 20.5 pieces/cm Latitude: 13 pieces/cm
Thickness: 1.81mm
Weight: 1010 g/㎡
Strength (N/5x20cm): 9378N
Latitude strength (N/5x20cm): 8553N
Elongation rate: 6.5%
Elongation rate of weft: 4%
Breathability: 9500 m ³ / ㎡ h
Interface method: double ring, spiral ring, imported spiral ring.
Usage: Non woven fabric forming and conveying.
Product features:
1. High precision weaving process, consistent breathability, and uniform weight of non-woven fabric.
2. Excellent anti-static performance and excellent peeling performance. The surface of the mesh belt is delicate, and the low weight fabric does not stick to the mesh belt, making it easy to peel off.
3. Good aerodynamic structure reduces the influence of fabric stiffness and increases softness.
4. High lateral stiffness, good longitudinal flexibility, able to operate under low tension, saving electricity.
5. The height of the joint is consistent with the thickness of the mesh surface, and there are no joint marks on the high and low weight non-woven fabrics
6. High resistance and high viscosity flat warp thread, with high wear resistance and fatigue resistance.
7. Uniform breathability and high dimensional stability.
