White round wire mesh WFB504
Mesh curtain image introduction:

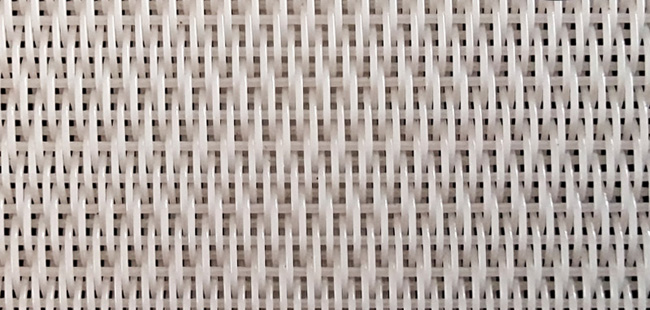

Mesh curtain front (fabric surface)

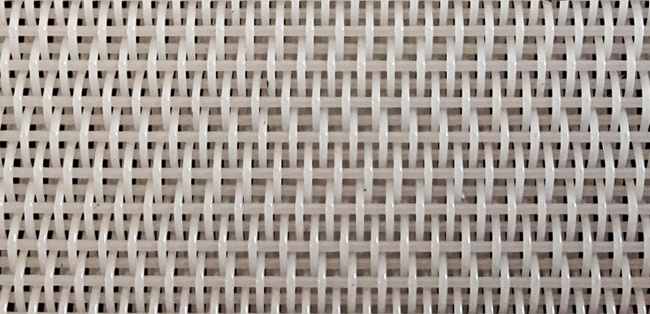

Mesh curtain reverse side (machine side)
Main technical parameters of mesh curtains:
Model: WFB504
Diameter (mm) Meridian: 0.50mm Latitude: 0.60mm
Density (cm) Meridian: 20.5 pieces/cm Latitude: 10.5 pieces/cm
Thickness: 1.68mm
Weight: 1000 g/㎡
Strength (N/5x20cm): 8378N
Latitude strength (N/5x20cm): 7553N
Elongation rate: 6.5%
Elongation rate of weft: 4%
Breathability: 9500 m ³ / ㎡ h
Interface method: self ring, spiral ring, imported spiral ring.
Usage: Spunbonded non-woven fabric forming and conveying.
Usage characteristics:
1. Long service life, wear resistance, and low network consumption.
2. High fatigue resistance, acid resistance, and weak alkali resistance
3. Light mesh marks and good molding quality.
4. Lightweight, easy to transport, and easy to install and operate with mesh curtains.
