Spunbond nonwoven fabric belt
Anti-hydrolysis Red Flat Wire Mesh belt WFB604
Picture introduction of anti hydrolysis red flat wire mesh WFB604 mesh curtain:

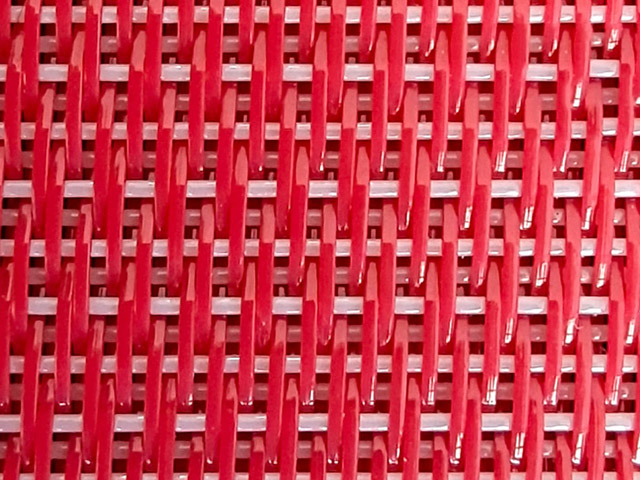

Mesh curtain front (fabric surface)

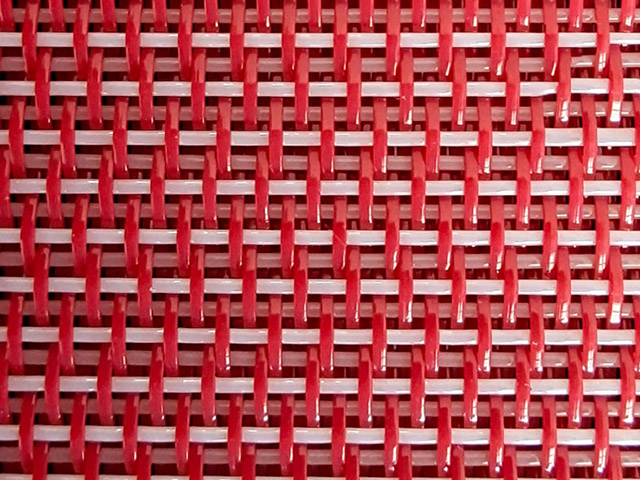

Mesh curtain reverse side (machine side)

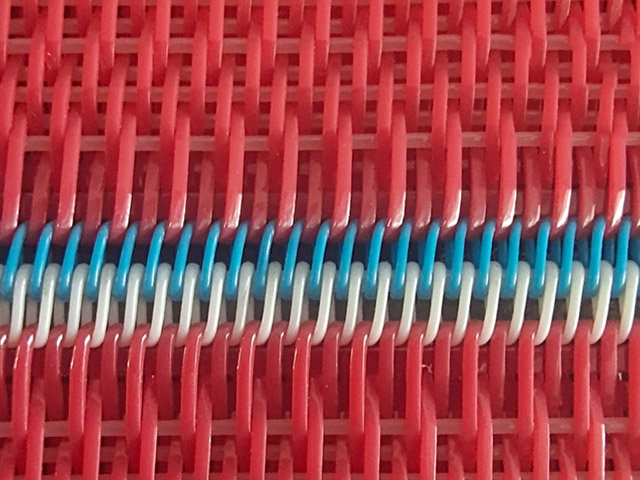

Interface method (German imported spiral ring)
Main technical parameters of mesh curtains:
Model: WFB604
Diameter (mm) Meridian: 0.38 * 0.58 mm Latitude: 0.60 mm
Density (cm) Meridian: 18.5 pieces/cm Latitude: 11 pieces/cm
Thickness: 1.68mm
Weight: 1000 g/㎡
Strength (N/5x20cm): 8800N
Latitude strength (N/5x20cm): 8200N
Elongation rate: 6.5%
Elongation rate of weft: 4%
Breathability: 9500 m ³ / ㎡ h
Interface method: Endless, reverse insertion, spiral ring, imported spiral ring.
Usage: Non woven fabric forming and conveying.
Product features:
1. High precision weaving process, consistent breathability, and uniform weight of non-woven fabric.
2. Excellent anti-static performance and excellent peeling performance. The surface of the mesh belt is delicate, and the low weight fabric does not stick to the mesh belt, making it easy to peel off.
3. Good aerodynamic structure reduces the influence of fabric stiffness and increases softness.
4. High lateral stiffness, good longitudinal flexibility, able to operate under low tension, saving electricity.
5. The height of the joint is consistent with the thickness of the mesh surface, and there are no joint marks on the high and low weight non-woven fabrics
6. High resistance and high viscosity flat warp thread, with high wear resistance and fatigue resistance.
7. Uniform breathability and high dimensional stability.
Model: WFB604
Diameter (mm) Meridian: 0.38 * 0.58 mm Latitude: 0.60 mm
Density (cm) Meridian: 18.5 pieces/cm Latitude: 11 pieces/cm
Thickness: 1.68mm
Weight: 1000 g/㎡
Strength (N/5x20cm): 8800N
Latitude strength (N/5x20cm): 8200N
Elongation rate: 6.5%
Elongation rate of weft: 4%
Breathability: 9500 m ³ / ㎡ h
Interface method: Endless, reverse insertion, spiral ring, imported spiral ring.
Usage: Non woven fabric forming and conveying.
Product features:
1. High precision weaving process, consistent breathability, and uniform weight of non-woven fabric.
2. Excellent anti-static performance and excellent peeling performance. The surface of the mesh belt is delicate, and the low weight fabric does not stick to the mesh belt, making it easy to peel off.
3. Good aerodynamic structure reduces the influence of fabric stiffness and increases softness.
4. High lateral stiffness, good longitudinal flexibility, able to operate under low tension, saving electricity.
5. The height of the joint is consistent with the thickness of the mesh surface, and there are no joint marks on the high and low weight non-woven fabrics
6. High resistance and high viscosity flat warp thread, with high wear resistance and fatigue resistance.
7. Uniform breathability and high dimensional stability.
